Functional Devices RIB24P Enclosed Relay 20Amp DPDT 24Vac/dc

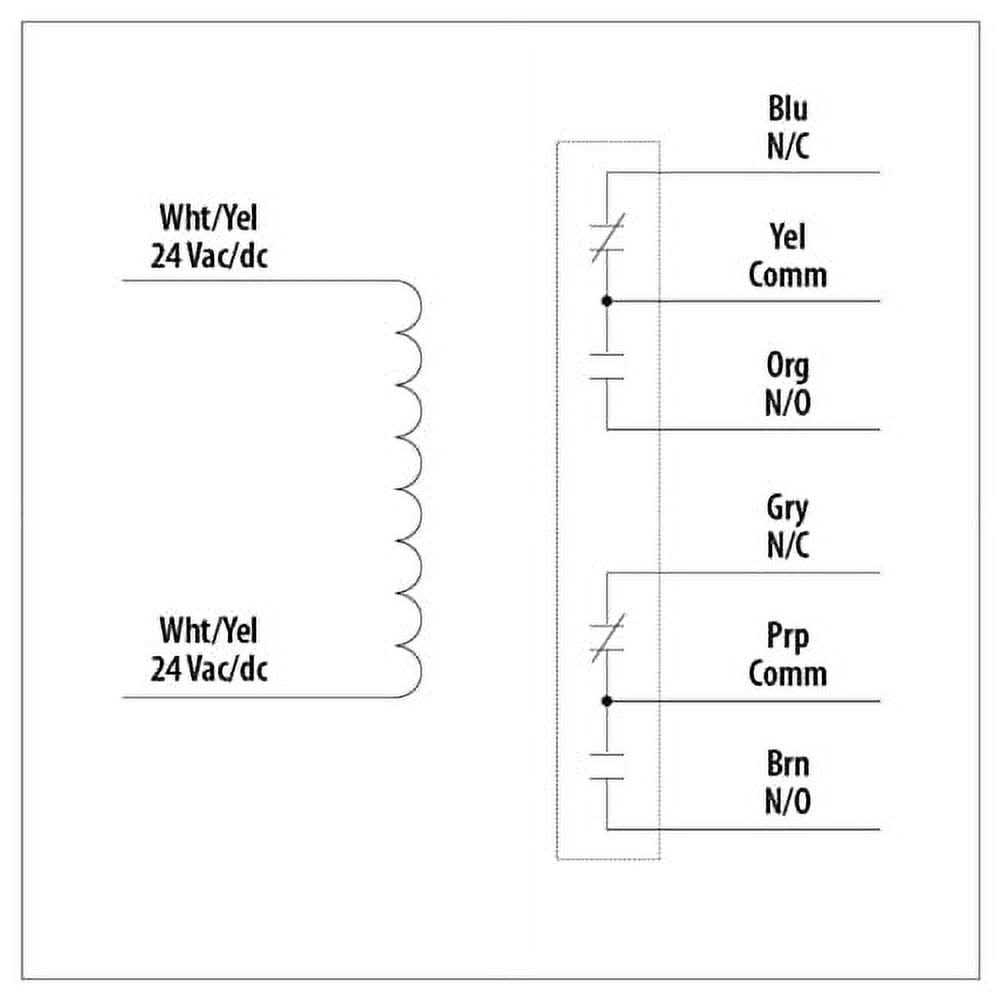

Functional Devices RIB24P-FA : Polarized Relay, 20 Amp DPDT, 24 Vac/dc Coil, NEMA 1 Housing Functional Device Polrized/Alarm Realys are polarized to work in a supervised system and may be turned on and off by reversing polarity. These prepackaged relays make installation quick and easy and can be used in fire alarm systems, smoke control systems, etc. SPECIFICATIONS # Relays & Contact Type: One (1) DPDT Continuous Duty Coil – Expected Relay Life: 10 million cycles minimum mechanical – Operating Temperature: -30 to 140° FHumidity Range: 5 to 95% (noncondensing)Operate Time: 18ms – Relay Status: LED On = Activated – Dimensions: 2.30″ x 3.20″ x 1.80″with .75″ NPT nipple – Wires: 16″, 600V Rated – Approvals: UL Listed, UL916, UL864, C-ULCalifornia State Fire Marshal, CE, Ro – HSHousing Rating: UL Accepted for Use in Plenum, NEMA 1Gold Flash: Yes – Override Switch: No Contact Ratings:20 Amp Resistive @ 300Vac20 Amp Resistive @ 28 Vdc, 15 Vdc15 Amp Resistive @ 600Vac1 HP @ 120 Vac2 HP @ 240-277 Vac3 HP @ 480 Vac – 600 Vac20 Amp Ballast @ 277-480 Vac – Not rated for Electronic Ballast770 VA Pilot Duty @ 120 Vac1,158 VA Pilot Duty @ 240 Vac1,110 VA Pilot Duty @ 277 Vac1,640 VA Pilot Duty @ 480 Vac Coil Current:110 m – A @ 20 Vac138 m – A @ 24 Vac55 m – A @ 20 Vdc55 m – A @ 24 Vdc77 m – A @ 30 Vdc Coil Voltage Input:24 Vac/dc ; 50-60 Hz – Drop Out = 3 Vac / 3.8 Vdc – Pull In = 20 Vac / 20 Vdc Functional Devices RIB24P-FA Specifications
