Leviton 5821-W Receptacle
$3.97

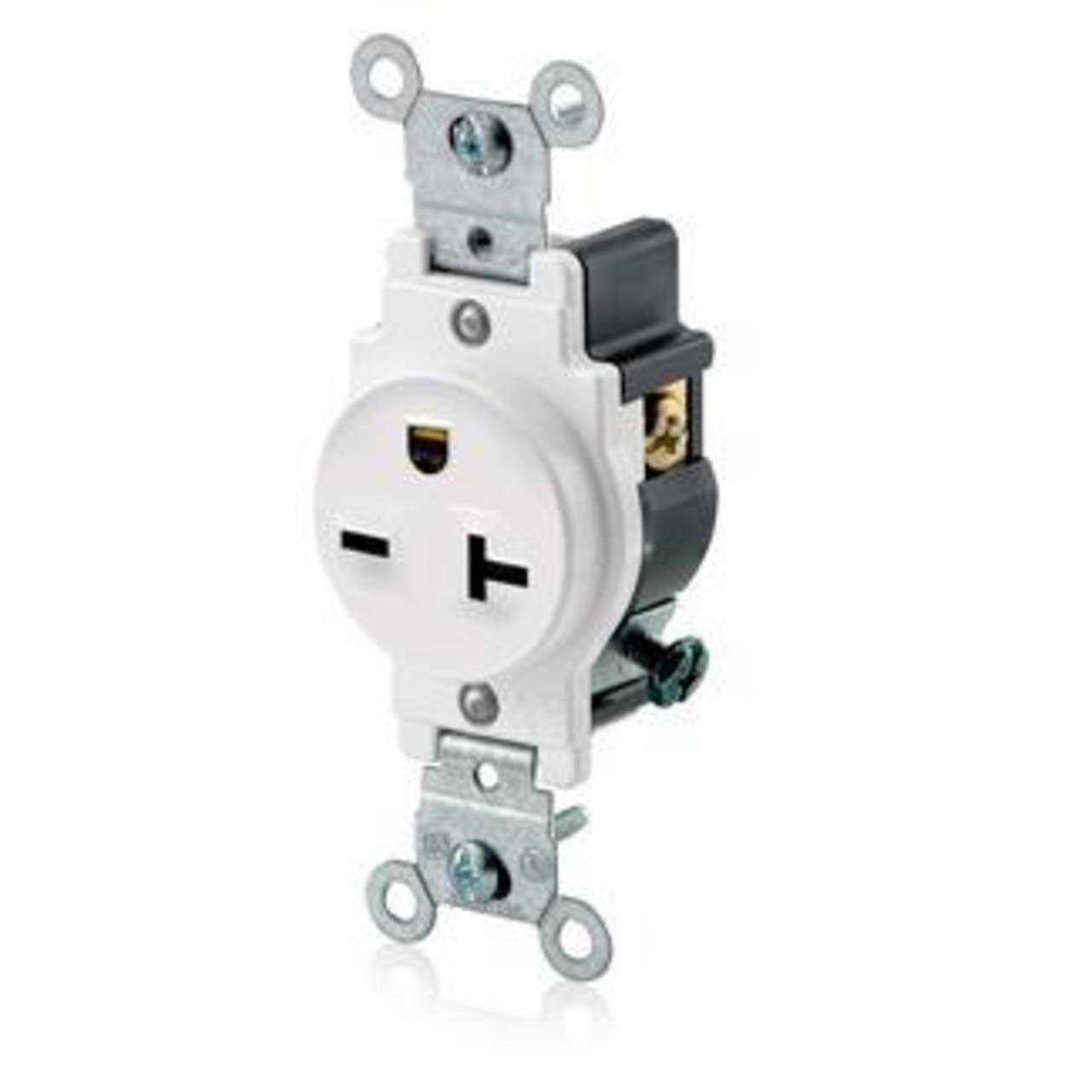

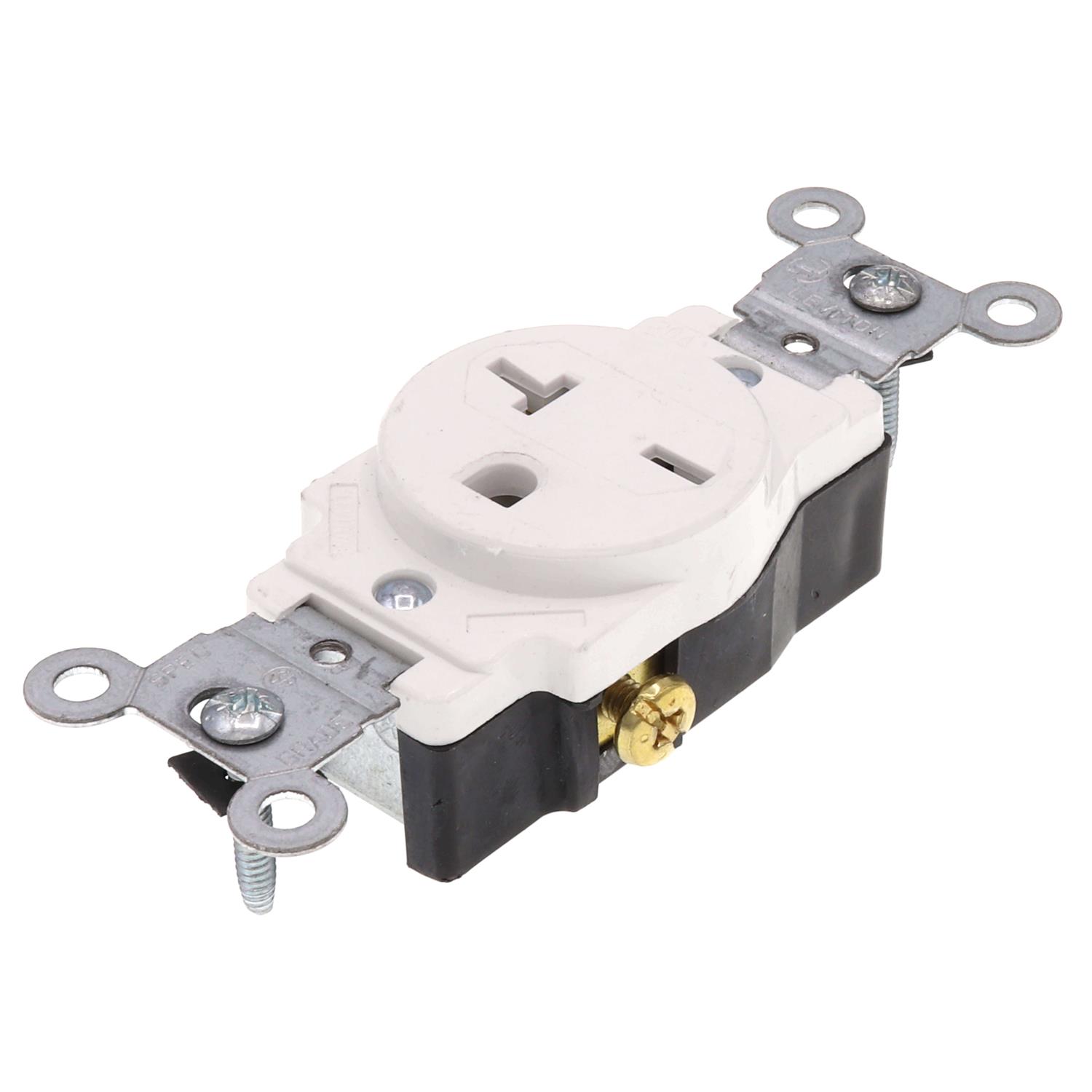

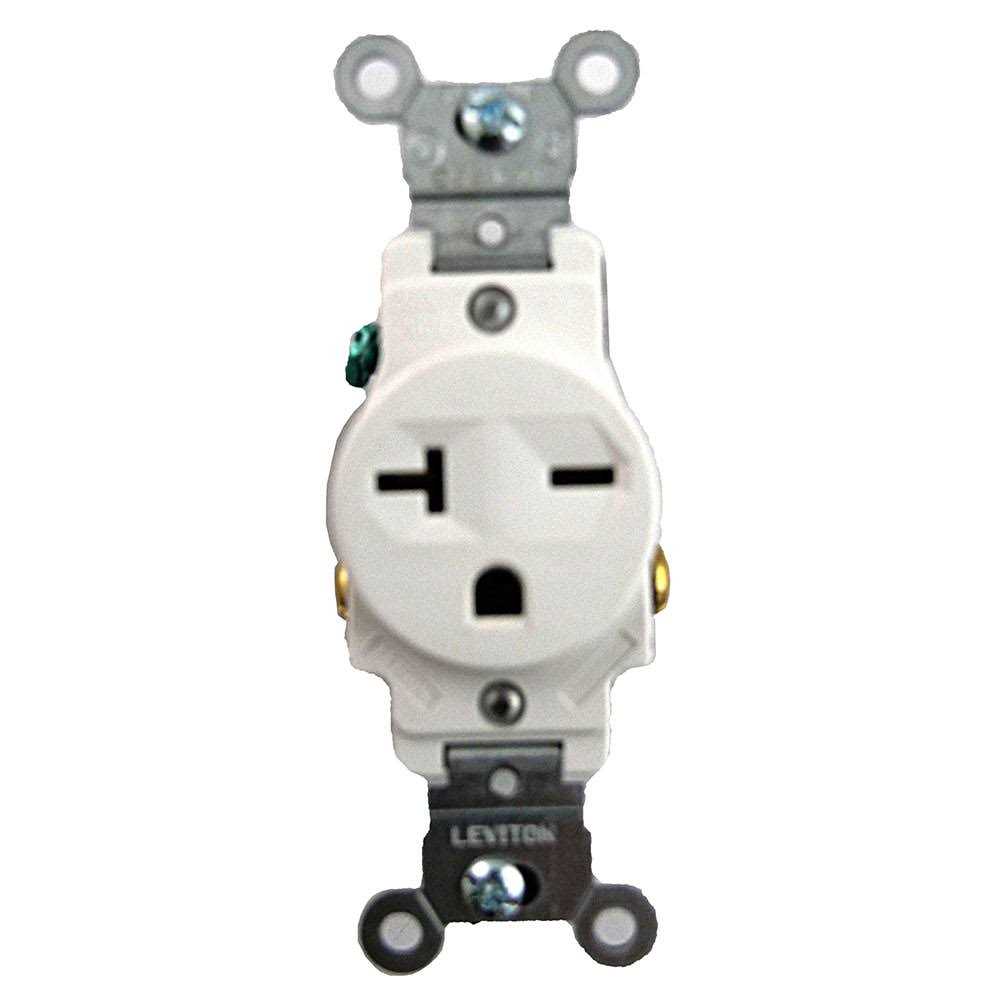

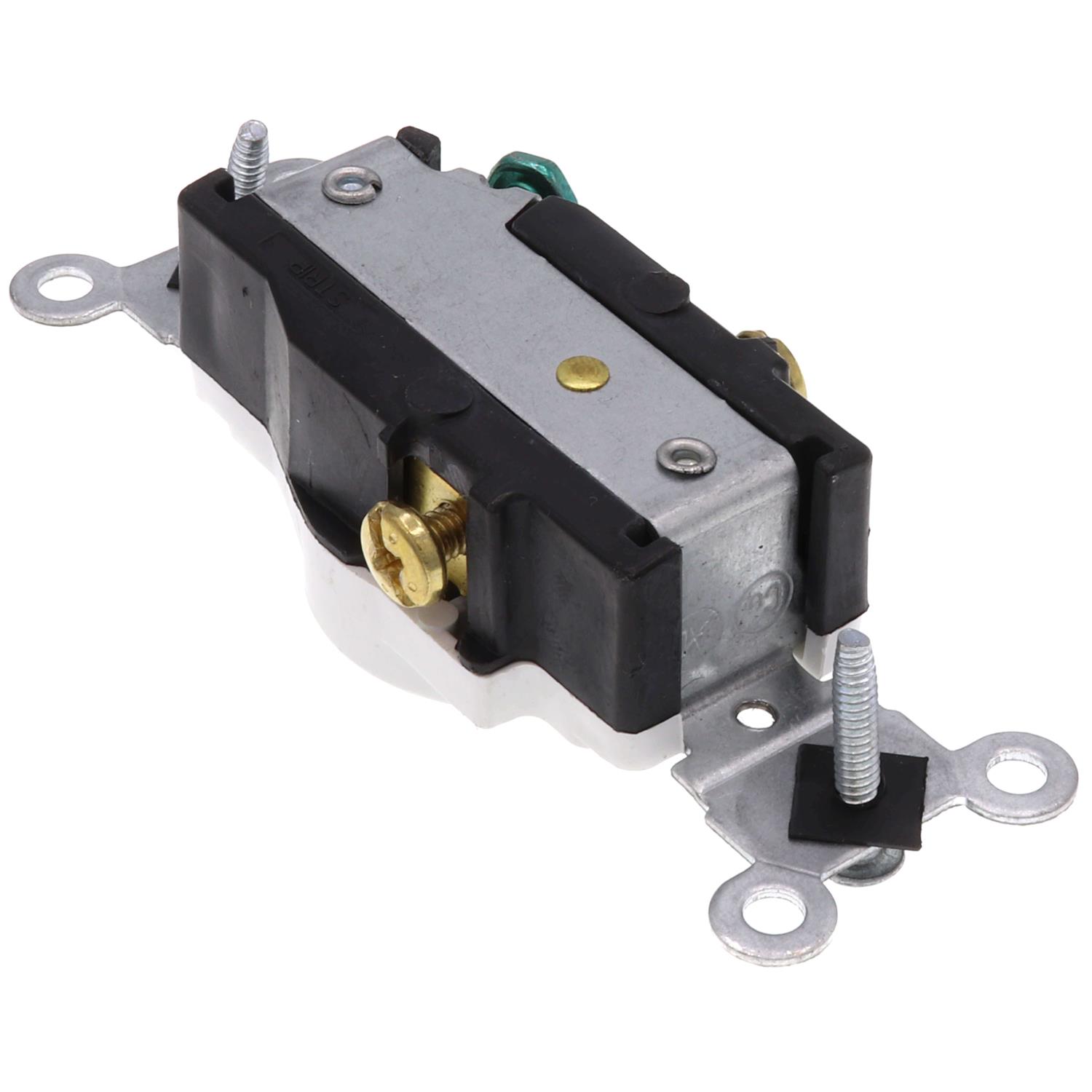

Leviton 5821-W 250V NEMA 6-20R Single White Receptacle
- Large-head terminal screws backed out and staked accept no.10 copper or copper-clad wire
- Heavy-duty brass power contacts for maximum conductivity and plug retention
- Heavy-gauge rust-resistant steel mounting strap
- Shallow design for maximum wiring room in box
Description
Commercial grade receptacle has a zinc-plated steel yoke and works at full rated current. It has a current rating of 20 Amps, voltage rating of 250 Volts and power rating of 2 hp. The 2-Pole grounding receptacle has three-wire circuitry and comes with 0.031-Inch thick brass double wipe line contacts. It can withstand up to 2000 Volts and measures 1.380 Inch x 4.060 Inch. Receptacle has side wired connection for convenience and can accommodate a wire of size 14 – 10 AWG and has brass-hot, green-ground and white neutral terminal for easy identification. It has brass 8-32 terminal screws, brass 8-32 grounding screw and 6-20R NEMA configuration. It has a rated V-2 flammability and operates at -40 to 60 deg C temperature. Receptacle is UL 498 listed/CSA certified and meets NEMA/NOM/ANSI standards.
